300px-FN F2000 S

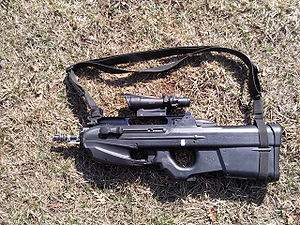

F2000 S as delivered to the Slovenian Army

The FN F2000 is a 5.56x45mm NATO bullpup assault rifle, designed by FN Herstal in Belgium.  The F2000 made its debut in March 2001 at the IDEX defence exhibition in Abu Dhabi, in the United Arab Emirates.


Design detailsEdit

The F2000 is a modular weapon system; its principal component is a compact 5.56x45mm NATO-caliber assault rifle configured in a bullpup layout.  The F2000 is a selective fire weapon operating from a closed bolt.

The rifle consists of two main assemblies: the barreled receiver group and the frame, coupled together by means of an axis pin located above the trigger group.  The barrel group has an integral MIL-STD-1913 Picatinny rail used to mount optical sights.  The frame or lower receiver contains the trigger group, the bolt and bolt carrier assembly, return mechanisms and magazine well.  A removable handguard is installed in front of the trigger which completes and encloses the trigger guard.

FeaturesEdit

220px-EUCOM Slovenian Armed Forces F2000S

Slovenian soldiers with F2000 S rifles.

The F2000 is a gas operated, fully automatic and abidextrious bullpup rifle.  Both the safety system and trigger mechanism were adopted from the P90 personal defense weapon; the selector toggle is a rotating disc located below the trigger.  The fire selector doubles as the weapon's manual safety and secures the firearm against accidental discharge.  The "safe" setting disables the trigger.  The hammers, group pins, and springs are steel while all other components are nylon injection molding.  The shell of the rifle is made of composite metals.

The F2000 is fed from standard NATO box magazines (STANAG 4179) with a 30-round cartridge capacity using 5.56x45mm ammunition.  The magazine catch/release button is installed symmetrically in the pistol grip, in front of the magazine; the magazine catch is operated by an oversized actuator used when wearing NBC gloves.  The F2000 is not configured from the factory to have a drop-free magazine system due to the friction from the removable dust gaskets.  The magazine needs to be pulled out manually.

The rifle does not have a hold-open device; the bolt does not stay back after the last round is fired.  The cocking handle is placed on the left side of the receiver, just above the handguard, and can be operated by left-hand shooters. There are no access points for the possible ingress of dirt or debris; the cocking handle slot is sealed.

The weapon's primary sight is a telescopic sight with a fixed 1.6x magnification contained in a plastic housing above the receiver, the secondary sight is a non-adjustable fixed notch and front blade molded into the optical sight housing cover.  The sight cover and sight module can be removed quickly to reveal the Picatinny rail.

The rifle's chromed hammer-forged steel barrel is stated to retain accuracy after 20,000 normal (nons-sustained) rounds.  The barrel also features a flash suppressor with an angled cut at the tip which directs the muzzle blast upward, compensating for muzzle rise.  The F2000 has an optional bayonet lug mounted near the muzzle and an adjustable gas regulator with two settings: "normal" for standard ammunition meeting NATO specifications, and "adverse"-used to send an increased volume of gas into the system to ensure proper functioning when fouled or when using low pressure ammunition.

Operating mechanismEdit

Pakistani F2000.JPEG

Members of the Pakistani Air Force on exercise with F2000 rifles.

This selective fire weapon is a gas-operated design utilizing a short-stroke piston system driven by propellant gases diverted into the gas cylinder through a port in the barrel; it fires from a closed bolt position.  The weapon is locked with a rotating bolt which features 6 radial locking lugs, a spring-powered extractor and ejector.  The chamber, bolt, and ejector mechanism can be accessed by flipping up a hinged inspection cover in the receiver, behind the optical sight housing.

The F2000 uses a unique ejection system, ejecting spent cartridge casings forward and to the right side of the weapon-through a tube running above the barrel.  This method of ejection provides for fully ambidextrious operation; the rifle can be used without amy modification by both right and left-handed shooters.  This ejection pattern was achieved by using a swiveling polymer tray, which intercepts the empty casing from the bolt face immediately after disengaging from the extractor.  As the empty casing is extracted, it is held while the rocker assembly tilts to lift it above and clear of the feed path as the next round is stripped from the magazine by the bolt head.  The casing is fed into the tray located in the cavity in the receiver wall, which then pivots the cartridge case and directs it into a chute (above the barrel); the case is discarded from the tilting tray by being impacted by a pin on the moving bolt carrier upon its forward return.  Only when the ejection tube contains more than five cases is the first of them ejected forward through a port just behind and to the right of the muzzle.

This system is patent protected.  The ambidexterity provided by forward ejection is its most obvious benefit, and removes many of the tactical and user difficulties (such as lack of ambidexterity, and gas and debris released in close proximity to the shooter's face) that bullpup designs usually create.

Grenade launcherEdit

300px-Peruvian naval infantrymen carrying F2000 rifles

F2000 standard configuration, in Peruvian service.

One of the modules developed for the F2000 system is a proprietary lightweight 40mm underslung GL 1 grenade launcher (empty weight-1 kg) that uses standard low-velocity 40x46mm grenades.  The launcher is a single-shot breech-loaded pump-action weapon with a barrel that slides forward for loading and unloading (like the M203 Grenade Launcher), locked by axial rotation of the barrel.

The grenade launcher's trigger is installed directly under the F2000's trigger so that it can be manipulated without removing the shooting hand from the rifle's pistol grip.  The double-action trigger lets the operator "try again" if the grenade's percussion type primer doesn't ignite.  The breech release button is found on the left side of the launcher body, like on the M203.  The grenade launcher comes with a basic flip-up ladder sight, but it was intended to be used with a specially designed optoelectric fire control system designated FCS, developed in cooperation with the Finnish company Noptel.

The aiming module is installed in place of the standard optical sight and becomes the weapon's primary sight when mounted, but its main purpose is to accurately determine and indicate the range of a grenade target.  The module is powered by a 9 V battery pack, installed in the stock, behind the magazine well.  The power pack is also intended to power any other tactical accessories or systems taht could be introduced.  The FCS integrates a low-power laser rangefinder, a day0-time aiming channel with an electronically projected reticle, a measured range display reading and a diode elevation adjustment indicator.

The fire control system calculates a firing solution manifested by the barrel's angle of elevation using target range information from the laser rangefinder, corrected manually by the shooter through a push-button interface on the FCS top cover to take account for head or tail winds that could affect the desired range.  The F2000 FCS also contains software with the ballistic properties of up to six types of 40 mm grenades and cam be reprogrammed to take advantage of future munition improvements.  Batteries for the FCS are located in the bottom of the buttstock.

After obtaining a range measurement, the distance to the target is displayed on a liquid crystal screen and the elevation diode flashes red.  Once a correct elevation has been achieved by tilting the rifle, the diode changes color to green indicating the weapon is ready to fire.  A further three signaling diodes have been installed on the top of the FCS unit, enabling accurate firing from the hip.  The fire control computer makes firing regular grenades much easier, though it cannot launch smart grenades.  The FCS is under continuous development and newer versions differ somewhat from the original concept.

A 3-shot grenade launcher is also being developed for the weapon.  The rifle can also be adapted for police operations by using under-slung modules with a 12-guage 5-shot shotgun or a .60-caliber less-lethal FN 303 pneumatic launcher.  A module with a 20mm grenade launcher is also planned with an integrated FCS unit.

VariantsEdit

F2000 TacticalEdit

220px-FN F-2000

The F2000 Tactical

The F2000 Tactical railed variant is similar to the standard model, but it lacks the optical sight, and comes instead with an extended top receiver MIL-STD 1913 rail with flip-up iron sights allowing for picatinny rail accessories to be fitted.

F2000 Tactical TREdit

The F2000 Tactical TR variant is similar to the F2000 Tactical, but includes a triple rail handguard for add-on accessories.

FS2000Edit

Intended for markets where fully automatic firearms aren't legal for civilian ownership, the FS2000 is a semi-automatic version of the F2000 that first became available in June 2006.  The FS2000 Tactical model is equipped with an extended barrel with a permanently attached flash suppressor and a 1:7 in right hand twist rifling rate; the bayonet lug was not included in the FS2000 rilfes.  The lower hand guard can be removed in the same manner as the F2000 to accept the same variety of accessories.  It comes with a Picatinny rail optic rail along with backup iron sights.  The rear flip-up National Match sized aperture is adjustable for elevation.  A small number of the early models featured a stepped barrel contour as well as a demilled bayonet lug.  Measurements on the stepped barrel's rifling were as long as the non-stepped barrel, revealing that the stepped barrel is not simply a shorter F2000 military barrel with an extended flash hider.

A variant of the FS2000, called the FS2000 Standard, is equipped with the factory F2000 1.6x magnification optic and sight cover.  It does not contain the grenade launcher computer.

F2000 SEdit

A version of the F2000 Tactical modified for the Slovenian Army.  It incorporates an elevated upper Picatinny rail that also doubles as a carrying handle.
